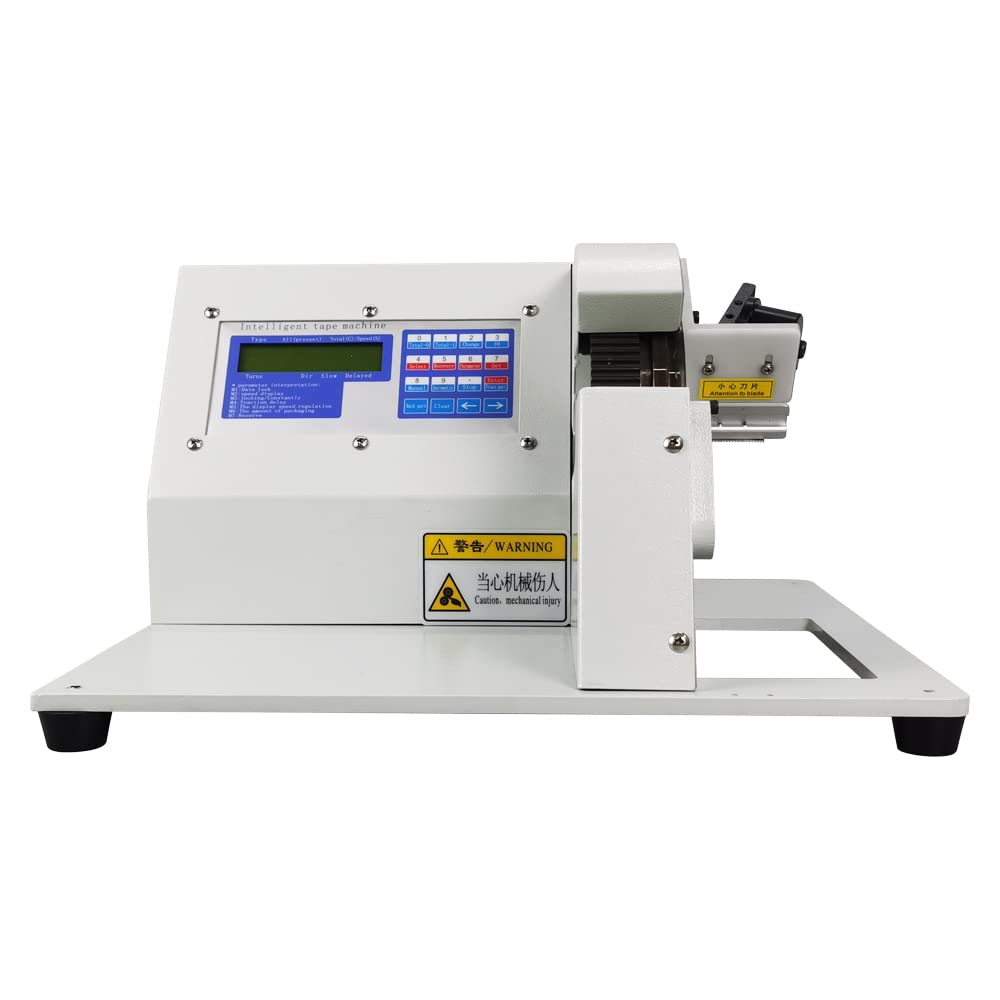

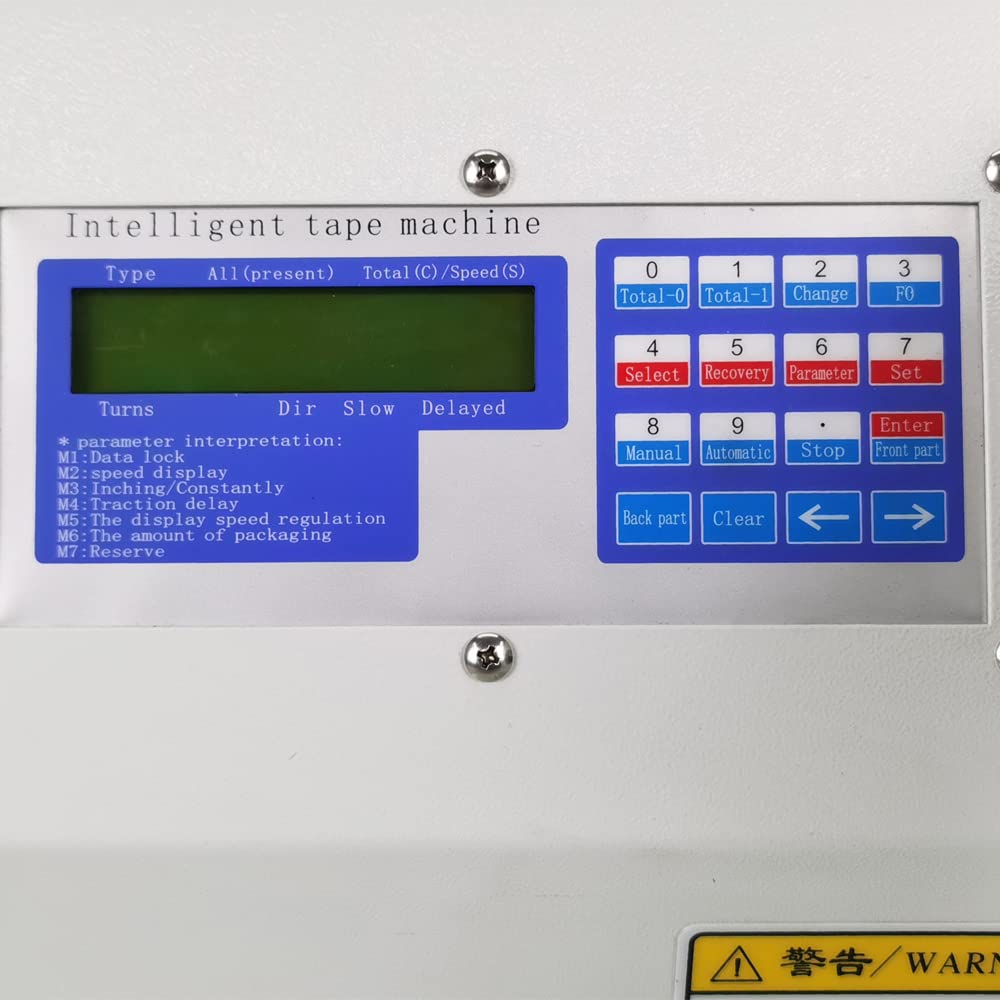

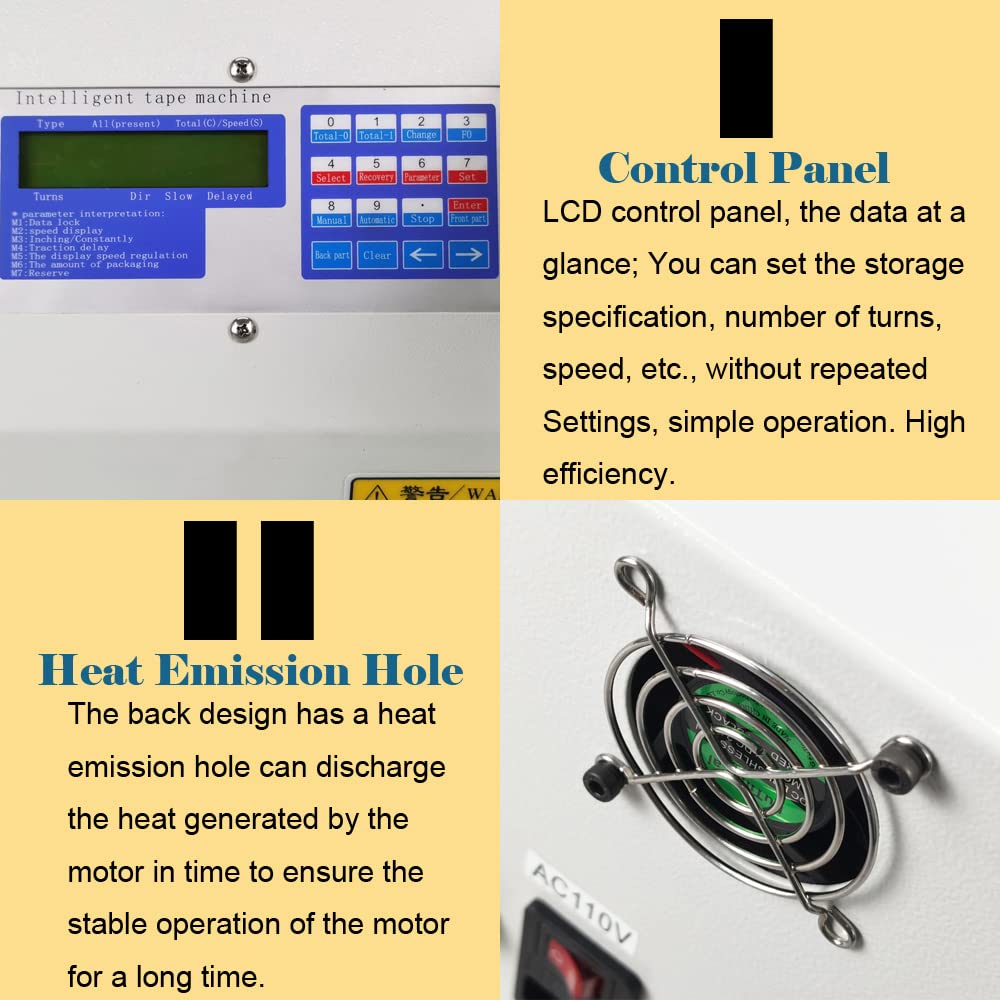

Product Overview This Automatic Wiring Harness Tape Winding Machine is suitable for Cloth tape, acetate tape, electrical tape, polyester tape. The circular pay-off port design conforms to the shape of the worker's hand when holding the thread, improves production efficiency and is not easy to make mistakes. It can do : wrap around , dense winding ,1/2 overlapping winding, Pressure side winding, flowers wrapped ,branch winding, merge winding,internal winding. Product Parameters: Voltage: AC110V/60Hz Tape width: 0.20"-0.98"(5mm-25mm) Diameter of wire: 0.12"-1.18"(3mm-30mm) Diameter of the inner hole of the tape: 1.46"(37mm) Rotate speed: 300rpm-2500rpm Winding length: Infinite length Scope of applicaiton: Cloth tape, Acetate tape, Electrical tape, Polyester tape Package size: 21.6"*19.7"*13.8"(55cm*50cm*35cm) Net weight/Gross weight: 37.5LB(17kg)/44.1LB(20kg) Control Panel LCD control panel, the data at a glance; You can set the storage specification, number of turns, speed, etc., without repeated Settings, simple operation. Highefficiency. Heat Emission Hole The back design has a heat emission hole can discharge the heat generated by the motor in time to ensure the stable operation of the motor for a long time. Tape Fixed The fixing plate can hold the tape in place, so that the wire is always stable in the center position and wound more evenly. The blade is convenient for cutting the tape.Improve the quality of production. Support Leg With four rubber support legs at the bottom, stable support, anti-skid and wear-resistant,.prevent the machine from water, the machine can reduce vibration and noise. Adhesive Tape Holder Adhesive tape holder Angle is adjustable, different angles can realize different winding methods, Adhesive tape holder can be customized to adapt to different tape holes. Driving Wheel The driving wheel is made of pure aluminum material, which can effectively reduce the weight of the machine, durable, the highest speed can reach 2500rpm, low noise.
