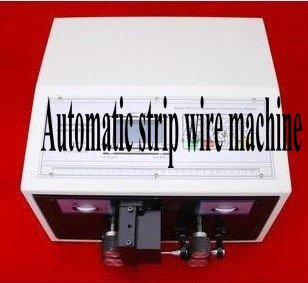

The product function characteristics/ Collection and integration, the microcomputer automatic computer for the strip line machine is a kind of introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment. Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing. Optimal stripped wire PVC, teflon, glass wire, etc./
Our product is to use LCD screen man-machine dialogue mode, with nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features. Wire length can set arbitrary, thrum and the line end parameters can also according to the customer request to change, different degree of finish stripping wires, also has the high tension line of line, casing of the shear etc. Function/
Product technical parameters/ 1,The product model SWT508C/ 2,Electricity source AC 110 V / 220 V / 50/60 Hz/ 3,Envelop dimensions 390 x350x255/ 4,Showing the way Chinese and English LCD interface/ 5,weight30KG/ 6,POWER200W/ 7,Cutting length 1-9999 mm/
8,Cutting tolerance (0.2+/- 0.002 by L) mm/ 9,Cut off the error can be modified/ 10,Stripping length thrum 0-35, wire ends 0-15 mm/ 11,Middle strip cut eleven place strip/ 12,Cutting wire core section 0.2 2.5 was the (AWG16 #-AWG32 #)/ 13,The biggest diameter ducts 6/ 14,Optimal stripped wire PVC/teflon/silica gel line /. Glass fiber cables, etc/
15,The blade material hard tungsten steel (import BaiGang optional) / 16,Peel linear velocity (a/hour) L = 100 mm, 3000 8000 PCS/h (high yield)/ 17,Driving way two wheel drive/
